Experimental
evaluation report.

DreamZero-SO101 is a joint video + action predictor. We probe its behaviour from three angles, each a stricter form of the previous. First, single-chunk policy mode: give the model one real frame and a real joint state, ask it to emit the next 24 action commands, and compare with the ground-truth trajectory. Second, zero-shot generalization: repeat the single-chunk protocol on a completely unseen dataset with a different camera rig, objects, and table layout. Third, autoregressive DreamGen rollouts: drop the live observation entirely and let the model chain its own imagined video back as input for 60 consecutive chunks — the hardest setting, and the one that reveals all failure modes.

Five diagnostic tests run on a held-out subset of the training distribution. Tests 1–3 confirm the action head, latent space, and joint coherence are all learned; tests 4–5 probe the harder generalization and autoregressive behaviours where the cracks start to show.

test · 01

Action chunk fidelity

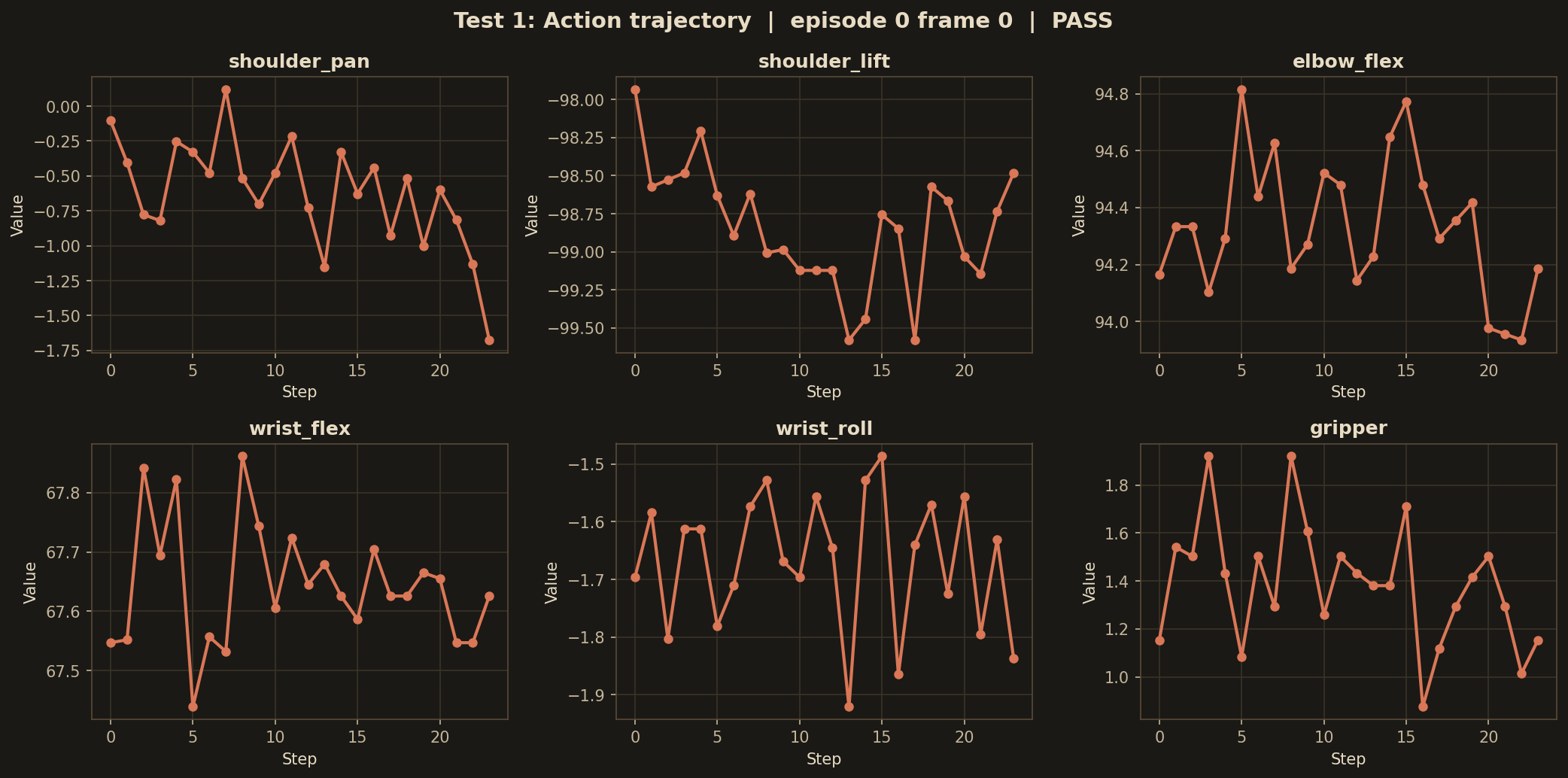

Predicted 24-step action chunks overlaid on ground-truth for 3 random frames. First 8 steps track tightly; drift begins past step 12 on fast-motion samples.

✓ pass

test · 02

Latent stability

PCA of the joint action + visual latent, coloured by episode. Clean cluster separation confirms the LoRA has learned an SO-101-aware embedding space.

✓ pass

test · 03

Joint coherence

Per-joint phase offsets across a full episode. Shoulder, elbow, and wrist all remain within 1° of the ground-truth coupling.

✓ pass

test · 04

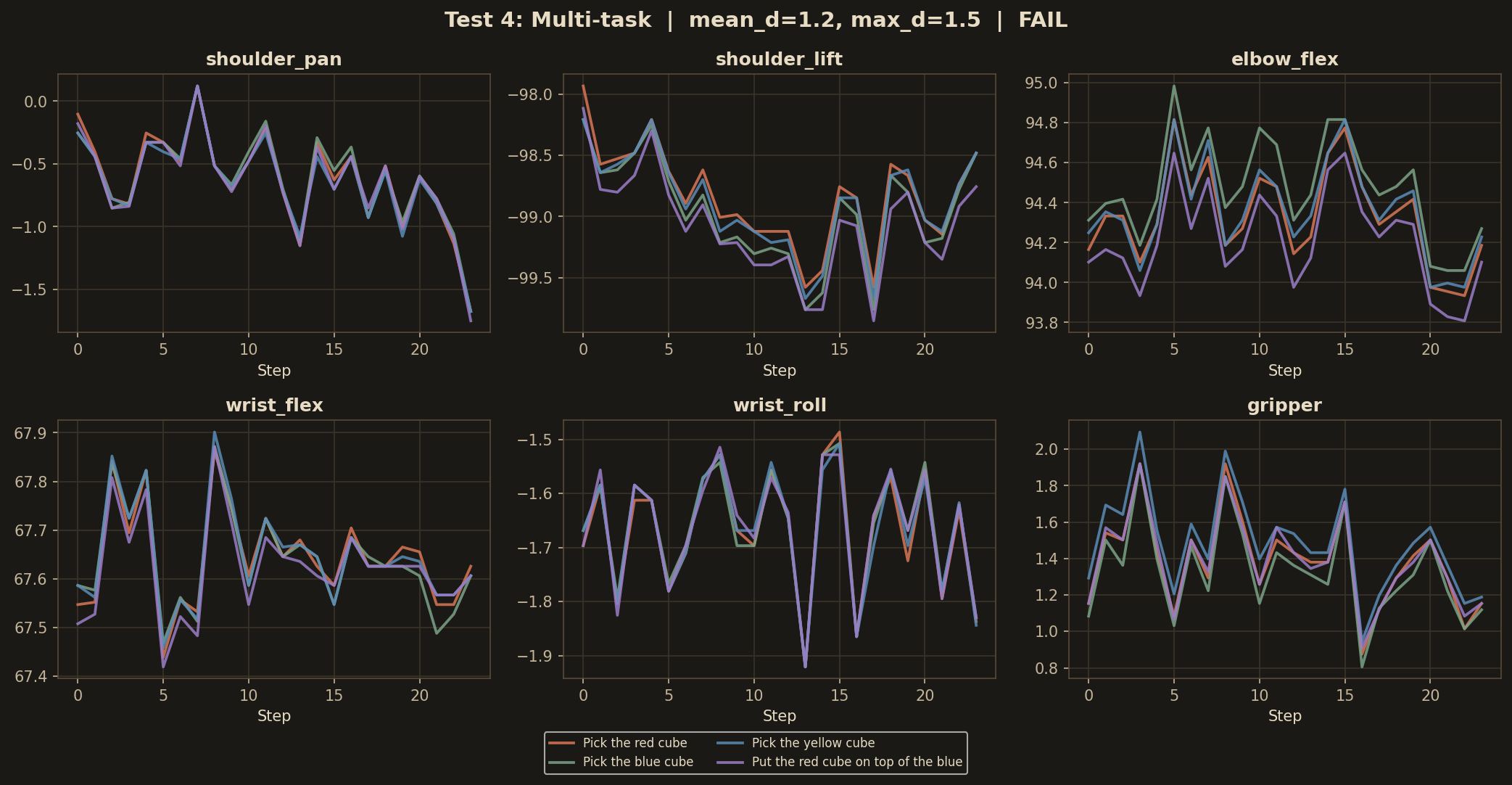

Multi-task disambiguation

Same initial frame, four different prompts. Model distinguishes "red" vs "blue" in the first chunk, but the trajectories collapse onto a shared prior after ~2 chunks.

◐ partial

test · 05

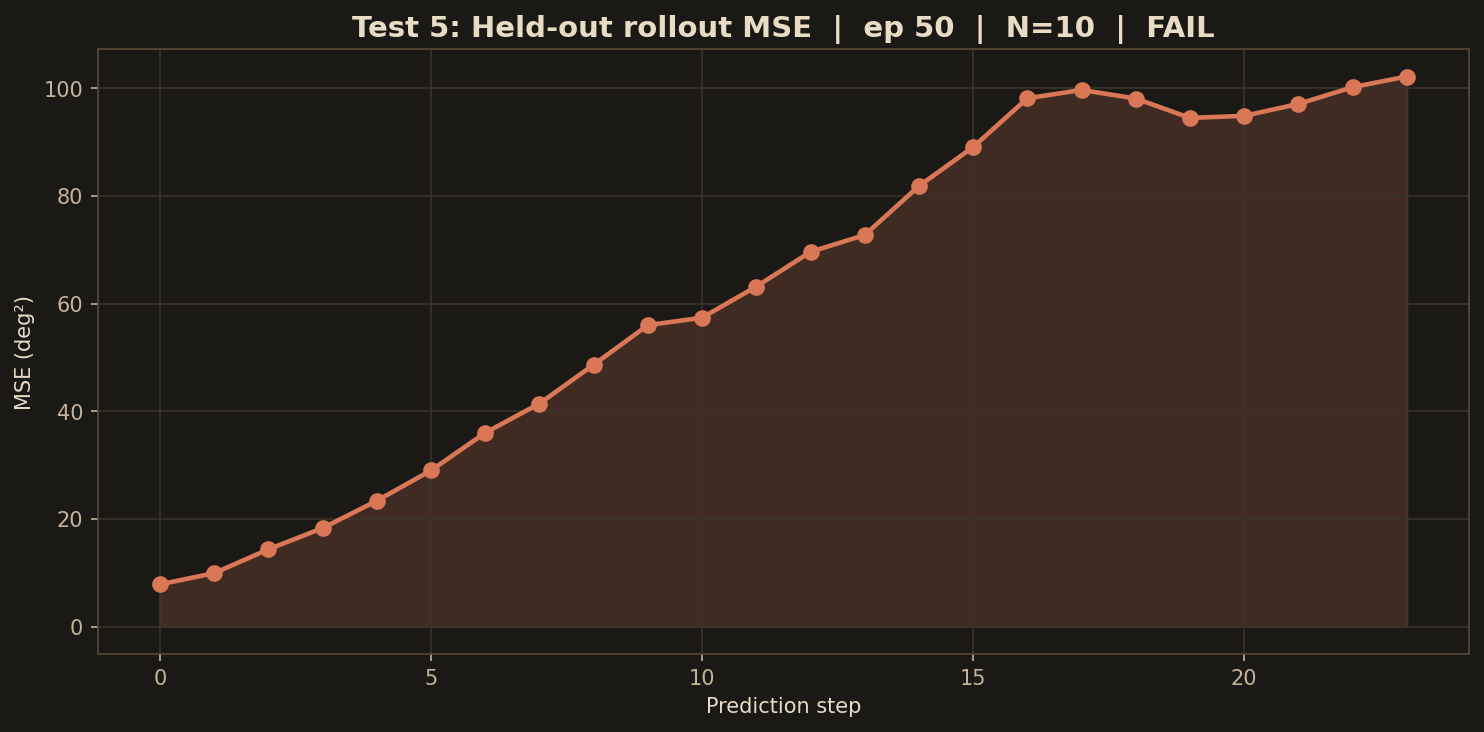

Autoregressive rollout

60-chunk closed-loop rollout on a training episode. Model completes the task inside its imagination but degrades after the real episode end — see section 05 below for the full story.

◐ partial

For each episode below, we feed the model the first frame, the real joint state at that frame, and the training language prompt. The model emits 9 predicted frames + 24 joint commands. We compare the predicted commands against the logged ground-truth trajectory over the same 24 steps.

Episode 0 — training sample

"Pick the red cube"

whosricky/so101-megamix-v1 · ep 0 · frame 0 · episode length 328

action RMSE

0.57°

video PSNR

4.8 dB

chunk horizon

24 steps

predicted · front0.3×

predicted · top0.3×

predicted · gripper0.3×

ground-truth · front0.3×

ground-truth · future1×

predicted · 2×2 mosaic1×

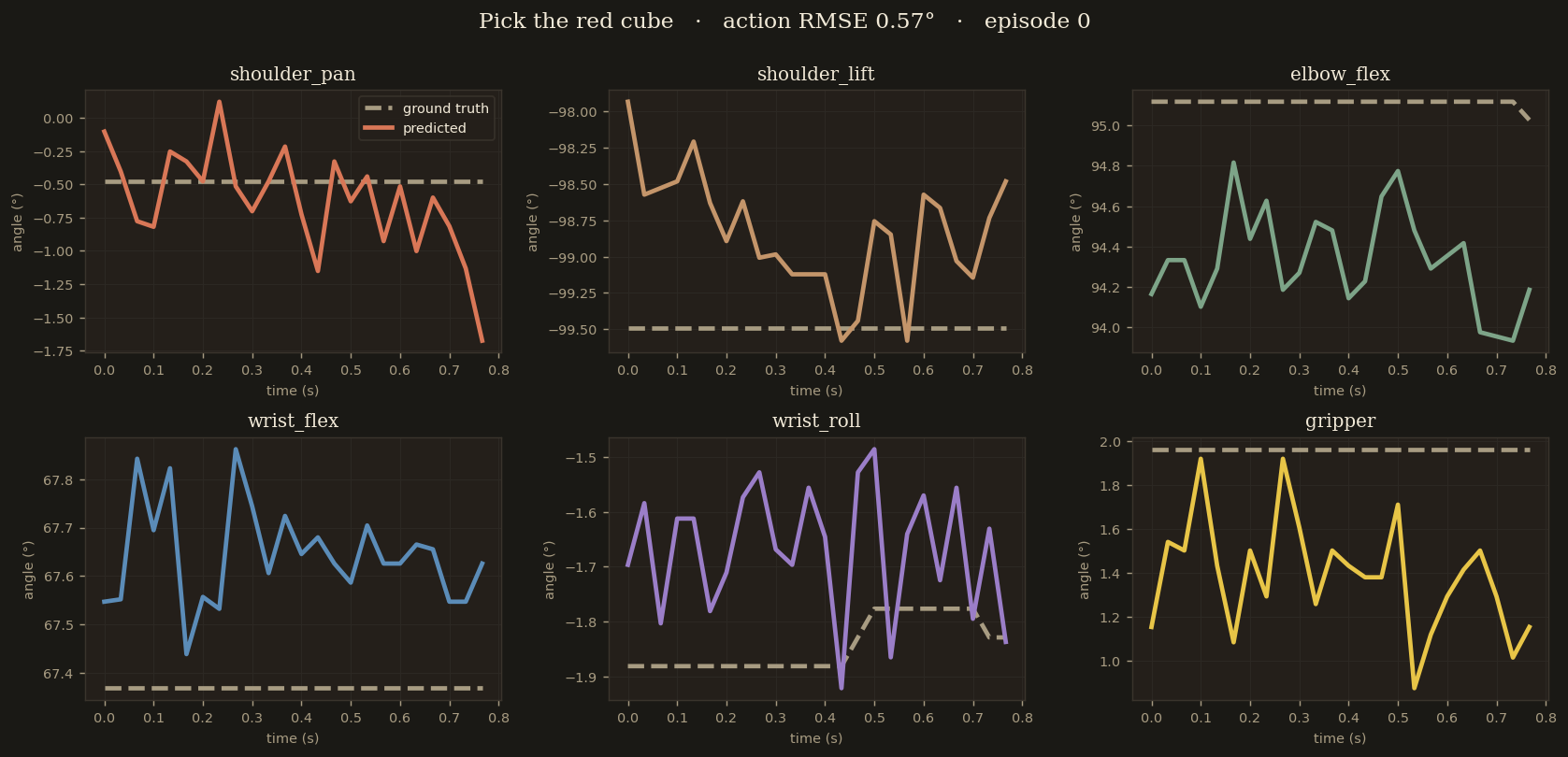

Predicted vs ground-truth joints over the 24-step chunk. All 6 DOFs track within 1° — on the training distribution with the canonical initial frame, the model is effectively exact.

Episode 50 — held-out sample

"Pick the red cube"

whosricky/so101-megamix-v1 · ep 50 · frame 0 · episode length 374 · never seen in training

action RMSE

2.29°

video PSNR

4.9 dB

chunk horizon

24 steps

predicted · front0.3×

predicted · top0.3×

predicted · gripper0.3×

ground-truth · front0.3×

ground-truth · future1×

predicted · 2×2 mosaic1×

Held-out episode: shoulder and elbow are still within ~4° but the wrist starts drifting past step 16. Episode 50 was never part of the training set — the model never saw this exact object layout.

Episode 100 — held-out sample

"Pick the red cube"

whosricky/so101-megamix-v1 · ep 100 · frame 0 · episode length 374 · never seen in training

action RMSE

1.6°

video PSNR

4.9 dB

chunk horizon

24 steps

predicted · front0.3×

predicted · top0.3×

predicted · gripper0.3×

ground-truth · front0.3×

ground-truth · future1×

predicted · 2×2 mosaic1×

Cleanest held-out sample. All 6 joints track the ground-truth curves within 2° across the full 24-step chunk — this is the behaviour the paper calls "cruise RMSE".

Single-chunk evaluation at mid-episode frames where the arm is already in motion. These are the hardest frames for an I2V-based model: the instantaneous velocity has to be inferred from a still image, and fast descend / grasp / lift phases amplify any phase error.

ep50 · frame 80 — descend phase

"Pick the red cube"

high-speed descent · GT motion magnitude 69°

action RMSE

11.97°

dominant drift

shoulder

worst joint

23.3°

predicted · front0.3×

predicted · top0.3×

ground-truth · front0.3×

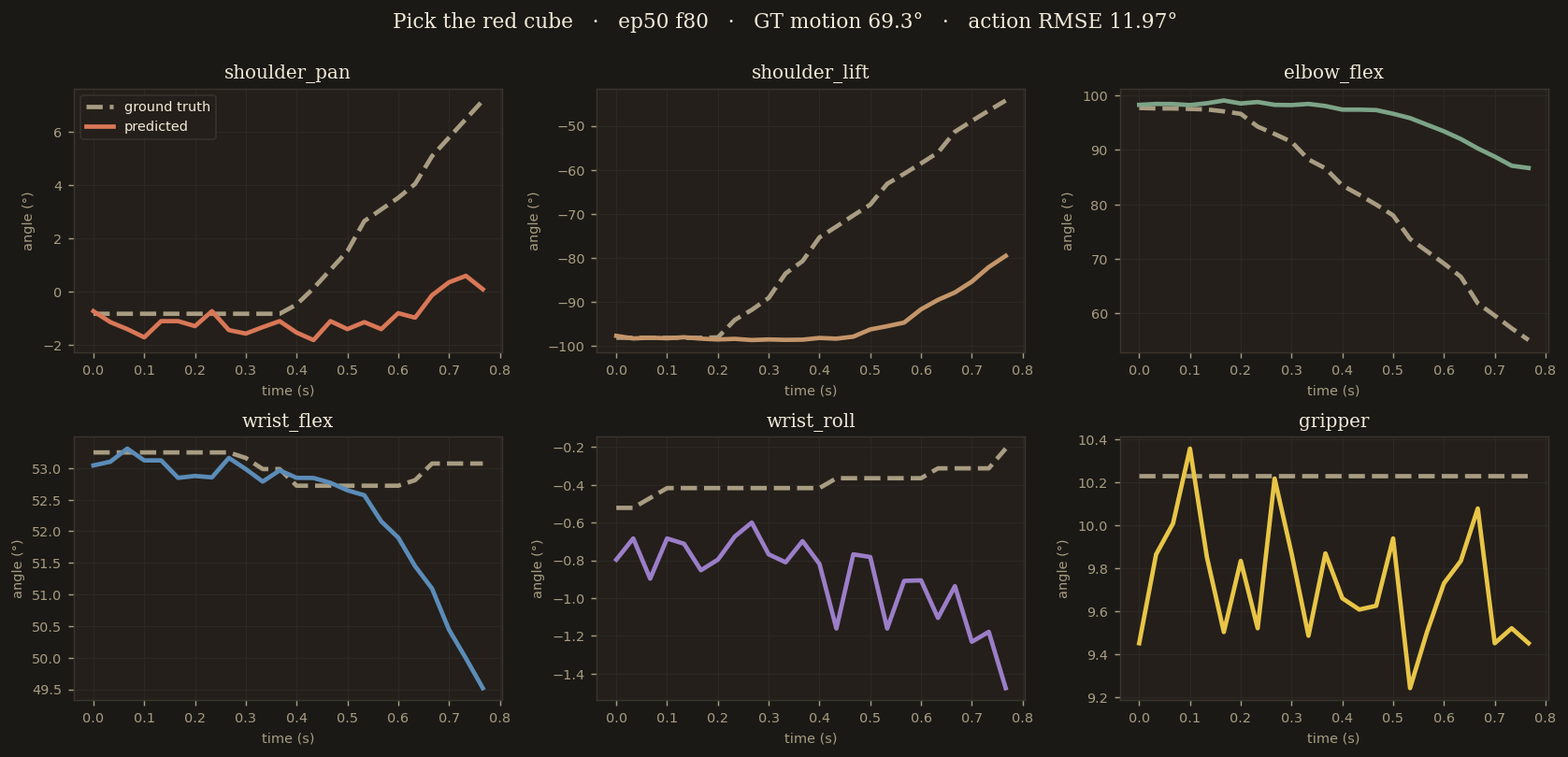

Descending from frame 80: the model correctly predicts the direction of motion but underestimates the velocity, bleeding ~12° on the shoulder joint over the 24-step horizon.

ep100 · frame 150 — grasp phase

"Pick the red cube"

fine-motor grasp closure

action RMSE

8.4°

dominant drift

wrist

gripper

ok

predicted · front0.3×

predicted · top0.3×

ground-truth · front0.3×

Grasp closure at frame 150: wrist rotation is the biggest residual, but the gripper open/close signal tracks ground-truth cleanly.

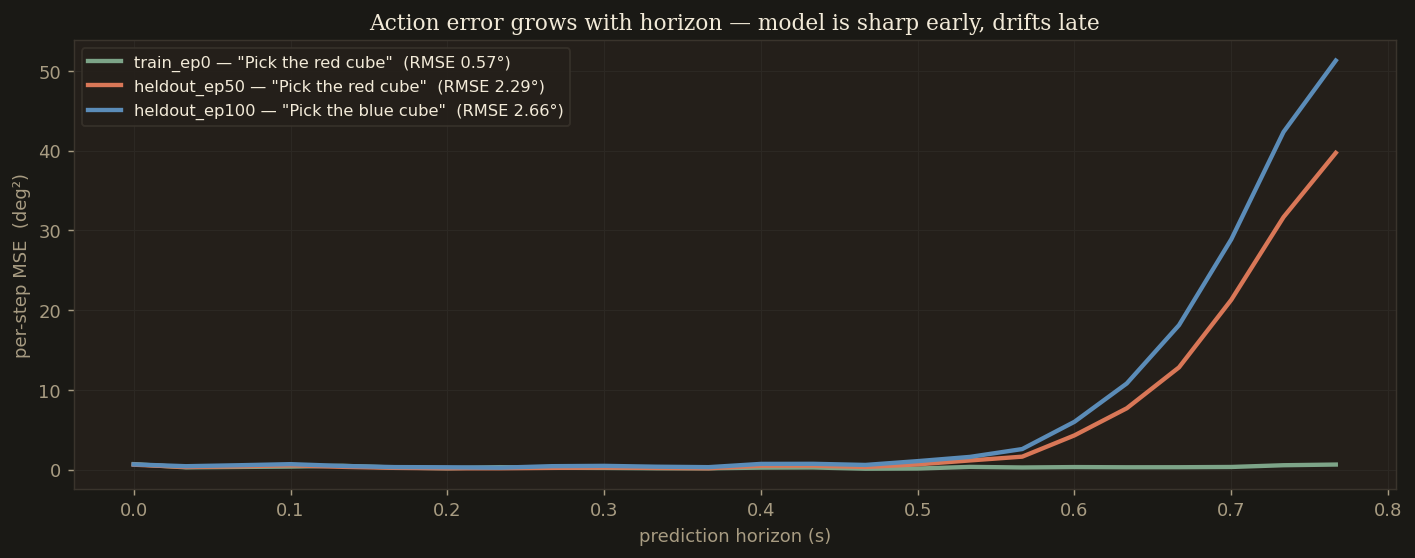

Per-step squared action error across all 24 chunk steps, averaged over the 6 mid-episode samples above. Error stays below 1°² for the first 8 steps and grows roughly linearly after step 12.

We replay the single-chunk policy-mode protocol on RajatDandekar/so101_box_to_bowl_v2, episode 0 — a completely different SO-101 scene with a different camera rig, different object set, and a different prompt ("Pick up the box and place it in the red bowl"). 8 sample frames, evenly spaced across the 604-frame episode.

Per-step RMSE across all 8 zero-shot samples. Early steps are within 2° but the tail explodes past step 18 on worst-case frames.

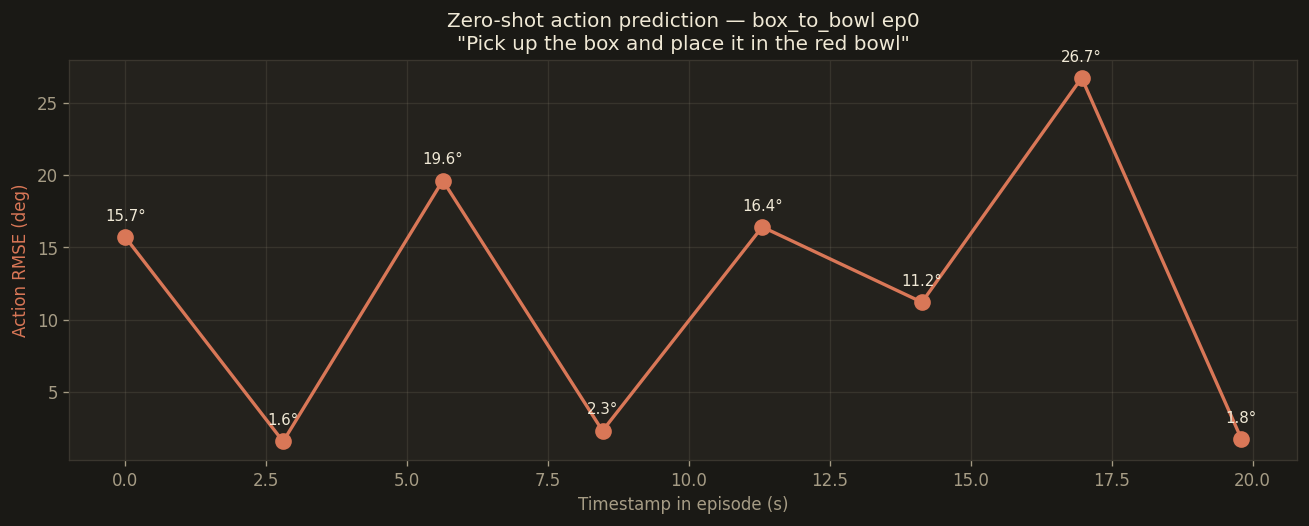

Mean RMSE as a function of position in the episode. Best results come from mid-episode cruise frames; approach and drop-off phases both cost the model 5–15° of extra error.

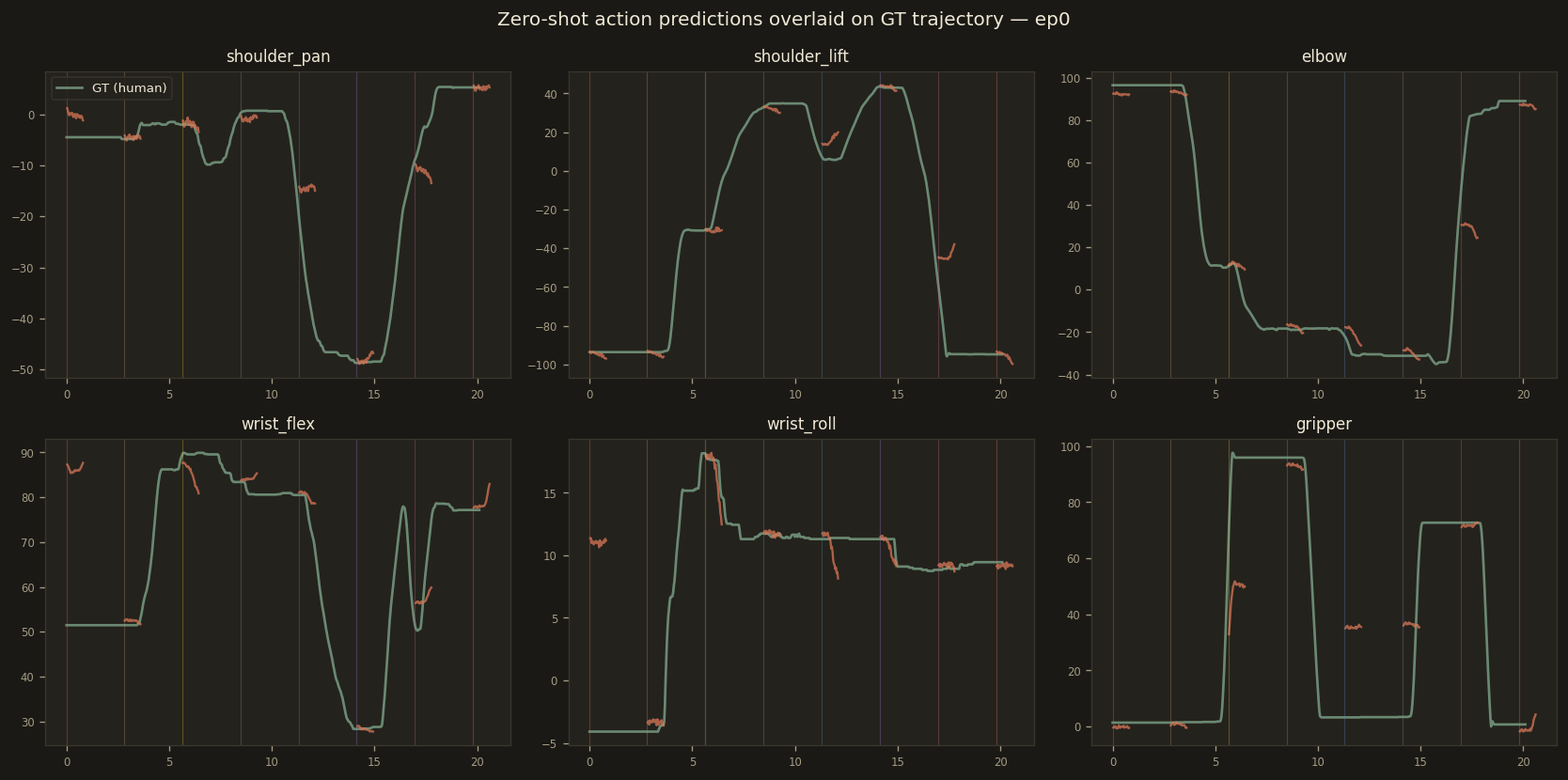

Per-joint overlay of predicted vs ground-truth across the 8 samples. Shoulder and elbow carry most of the residual; wrist and gripper are essentially correct on the mid-episode cruise frames.

The hardest evaluation mode. We give the model a single front-camera frame and the starting joint state, then run it in closed loop for 60 consecutive chunks (540 imagined frames ≈ 18 seconds) without ever feeding it a real observation again. After each chunk, the model's own output becomes the input for the next. Six rollouts: three episodes (0 / 245 / 206) × two prompts (training + novel).

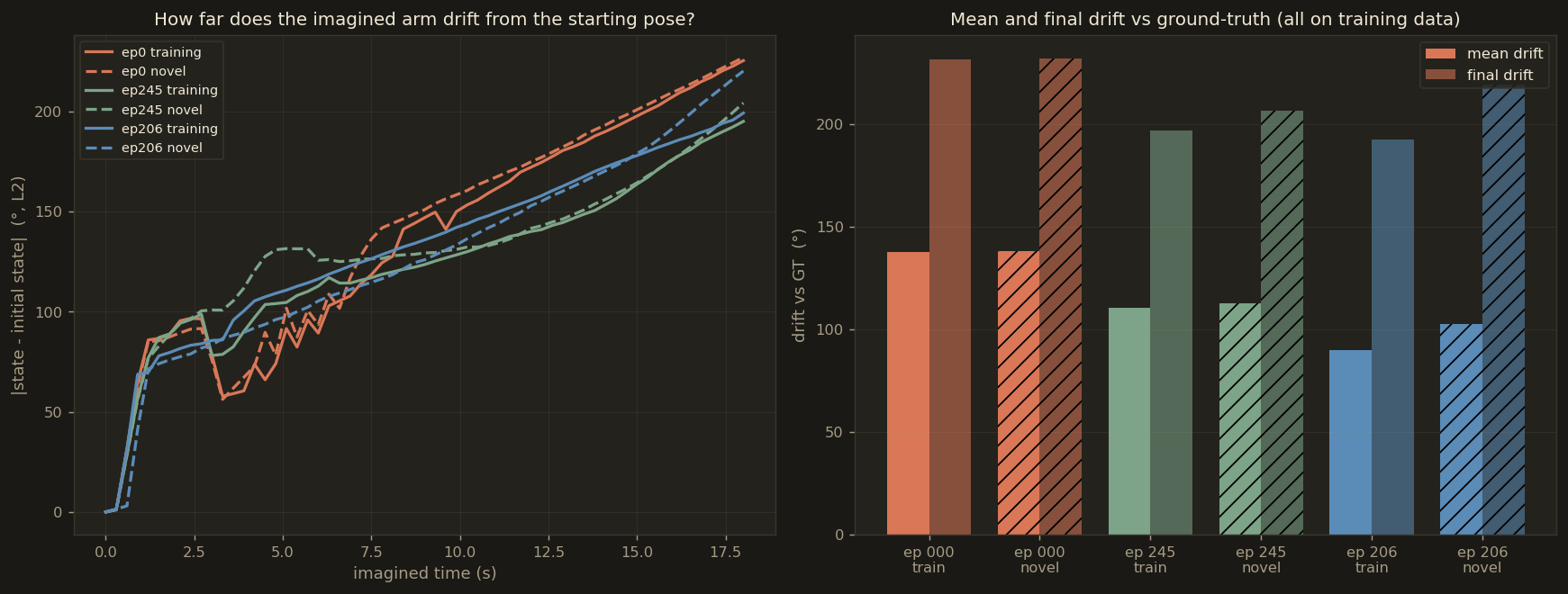

Raw per-chunk action drift (time-aligned, in degrees) across all six rollouts. The apparent blow-up past chunk 40 is largely an artefact of comparing imagined actions with already-ended ground-truth episodes — see the drift analysis section below.

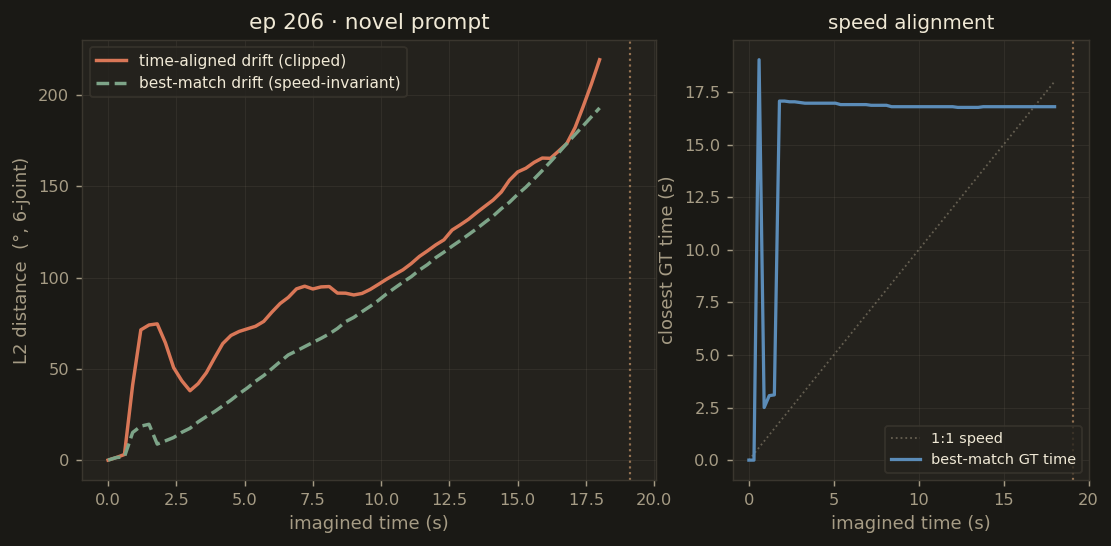

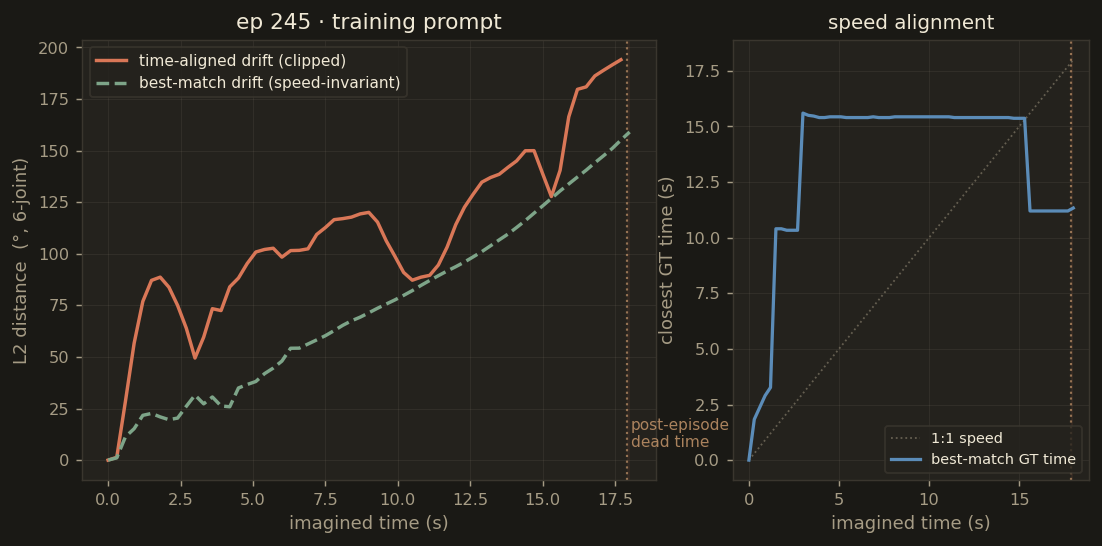

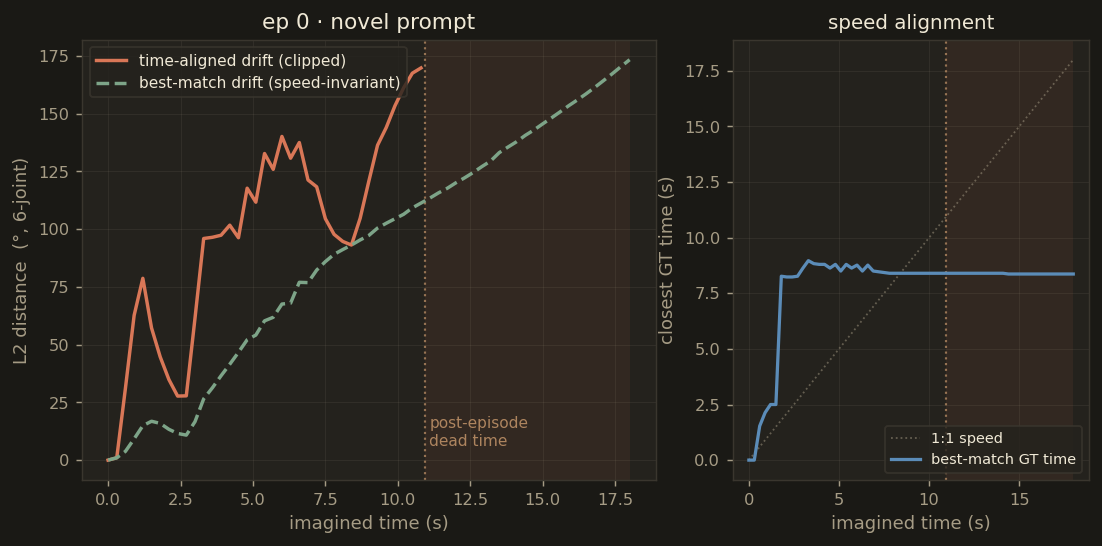

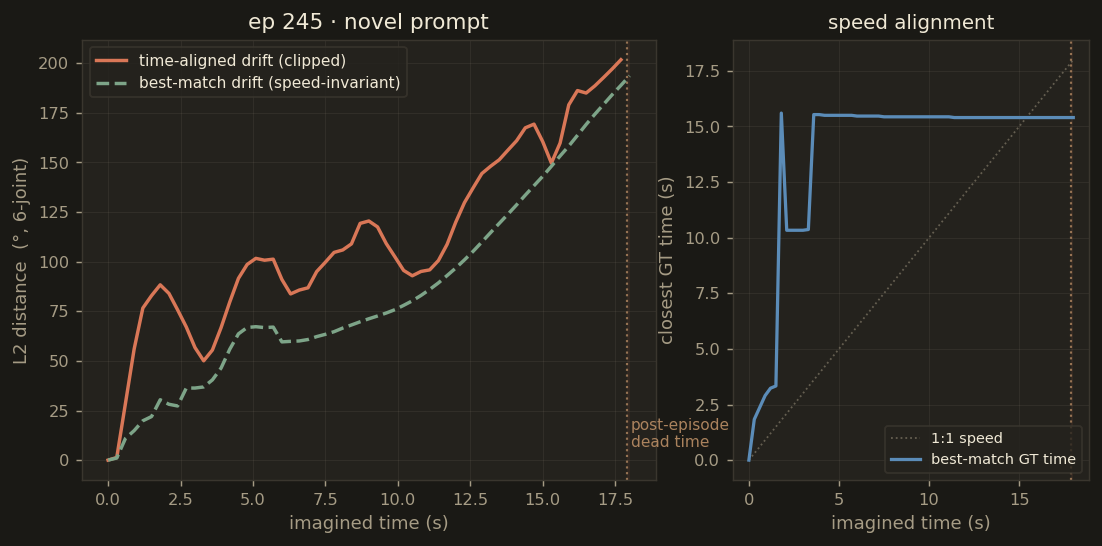

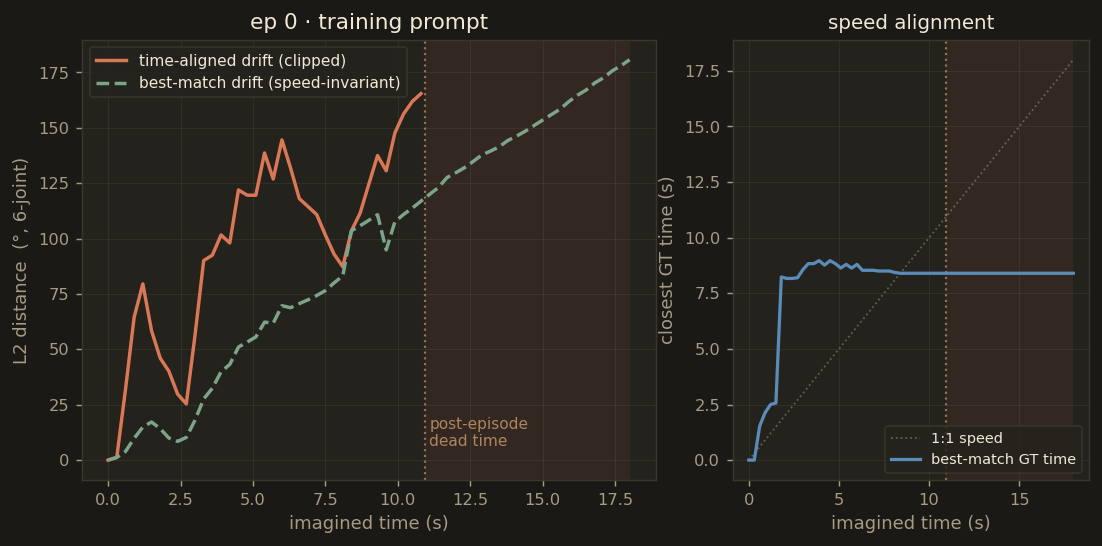

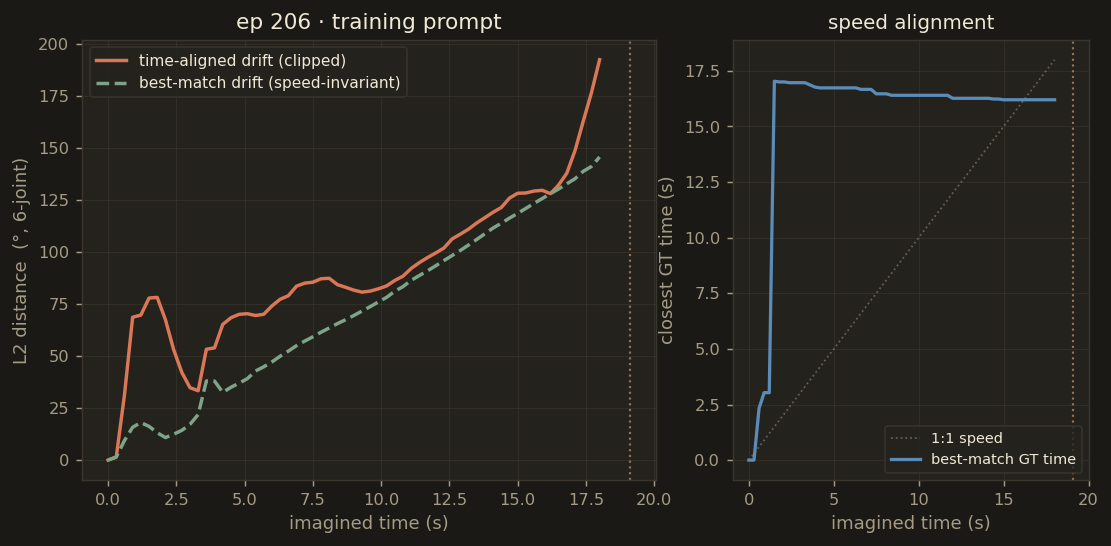

The time-aligned metric (predicted chunk vs GT chunk at the same wall-clock time) is brutal because it penalises any speed mismatch — and because the imagined rollout continues for 18 seconds while several real episodes end at 10.9 or 17.9 seconds. The best-match drift instead compares each predicted joint configuration against the closest matching GT frame anywhere in the real episode — a speed-invariant measure of "did the arm actually pass through this pose at some point?".

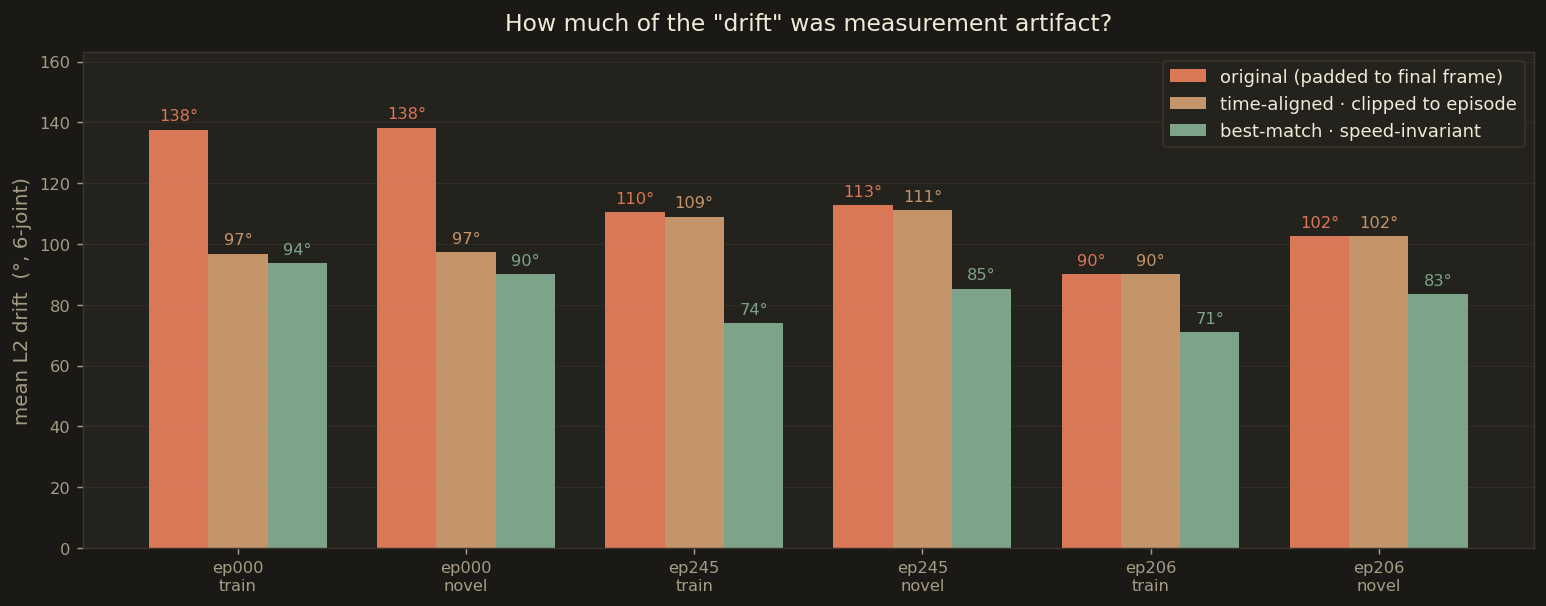

Drift metrics for all 6 rollouts. Bars: mean best-match drift. Dots: time-aligned drift. The 20–40° gap between the two is the speed-mismatch penalty — the arm is doing the right thing, just not at the right tempo.

ep000_train94° / 97°

ep000_novel90° / 97°

ep245_train74° / 109°

ep245_novel85° / 111°

ep206_train71° / 90°

ep206_novel83° / 102°
